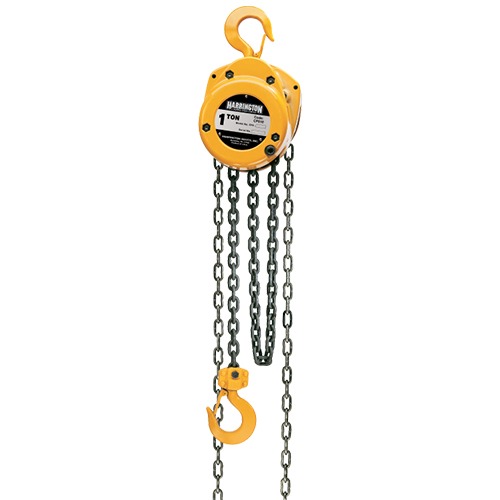

Description
CAPACITY
- 1/2 – 5 Ton
COMPLIANCE
- ANSI/ASME B30.16, “Safety Standard—Overhead Hoists (Underhung).”
- ANSI/ASME HST—2M, “Performance Standard for Hand Chain Manually Operated Chain Hoists.”
BODY
- Exceptionally strong thick die-cast aluminum body
- Compact, lightweight and portable
LOAD CHAIN
- Grade 100 heat-treated manganese alloy
- Resists abrasion and wear
- Standard Lift: 10′, 15′ or 20′
HOOKS
- Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads
- Top and bottom hooks have heavy-duty hook latch
OPERATION
- Hand chain operated
- Low hand-pull force for easy operation
BEARINGS
- Smooth running, pre-lubricated ball bearings
- Precision-machined drive train components
BRAKE
- Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
- Enclosed to protect from dust, rain, and dirt
OPTIONS
- Chain container
- Nickel-plated chain for corrosive environments
- Inspection hooks
- Lift lengths can be customized to suit requirements
